Description

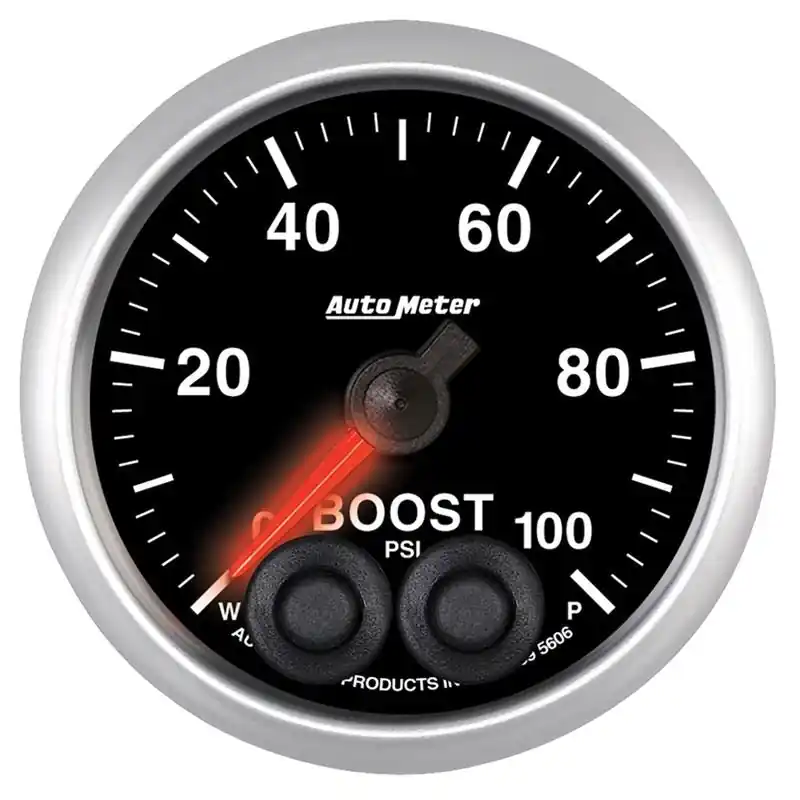

Forced Induction Applications Require Precise Monitoring Of The Boost Pressure Being Created By Your Turbo Or Supercharger To Get The Most Power Safely From Your Engine. Autometers Digital Stepper Motor Boost Gauge Provides The Most Accurate Reading Available, Unparalleled Response Time And Smooth Needle Movement. Designed For Diesel Or Extreme Boost Applications, These Gauges Include A Highly Advanced 1/8″ Npt Pressure Transducer And Wiring Harness For Ease Of Installation. Data Logging Is Also Possible Thanks To An Analog .5 – 4.5V Output.
Features:
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Acquire data for later review with one-touch Peak Recall functionality
- Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up
- Built-in Pro-Control circuits with custom programmable activation and deactivation points for key functions like lights, fans, switches, and pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Data logger 0-5V output provides ECU and data systems with vital information
- Gauge kit includes 1/8in NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
Specification
- Part Type: Boost Gauge
- Bezel Color: Brushed Aluminum
- Dial Color: Black
- Gauge Type: Boost/Vacuum
- Light Source: LED
- Lighting Color: 7 User Selectable Colors
- Pointer Color: Fluorescent Red
- Gauge Movement Type: Electric Digital Stepper Motor
- Gauge Diameter (in): 2-1/4
- Range: 0-100 PSI
