Description
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry’s Problem Solver.
FEATURES
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
SPECIFICATIONS
- Bar Diameter – Inches: 0.90
- Bar Diameter – MM: 23.00
- End 1 Type: Squared
- End 2 Type: Tangential
- Free Height – Inches: 15.00
- Free Height – MM: 381.00
- Installation Height (mm): 323.90
- Front Spring Outside Diameter (in): 5.860
- Front Spring Relaxed Length (in): 15.00
- ID – Inches: 4.08
- ID – MM: 103.60
- Installation Height – Inches: 12.75
- Installation Height – MM: 323.90
- Load – lbs: 2325.00

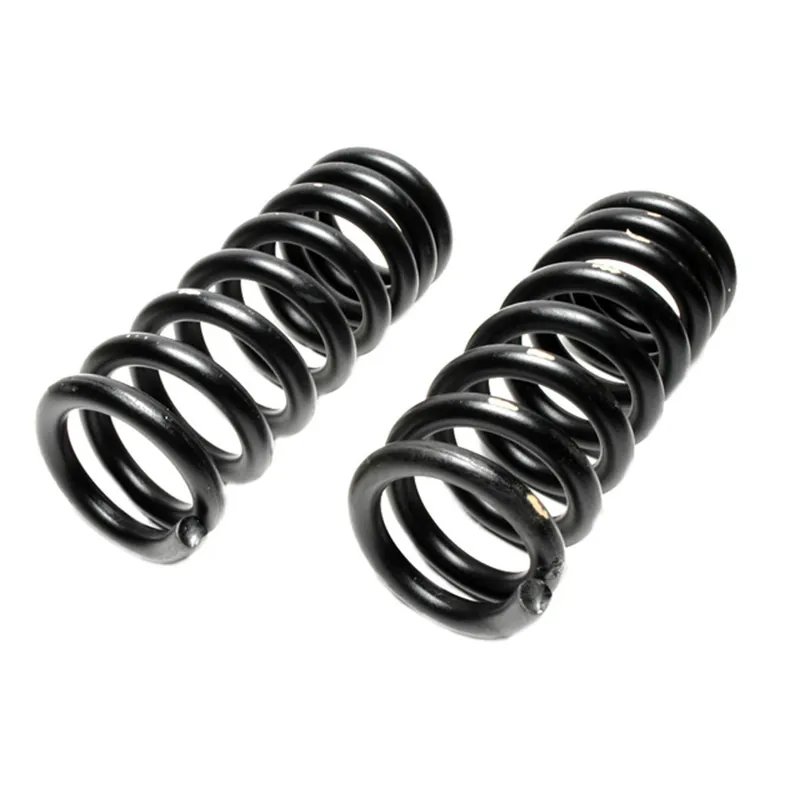

- Part Description: Coil Spring Set
- Rear Spring Compressed Length (mm): 323.90
- Rear Spring Outside Diameter (in): 5.860
- Rear Spring Relaxed Length (mm): 381.00
- Spring Color: Black
- Spring Rate – lbs per inch: 1025.00
- Spring Type: Variable Rate
- Bar Diameter (mm): 23.00
