Description

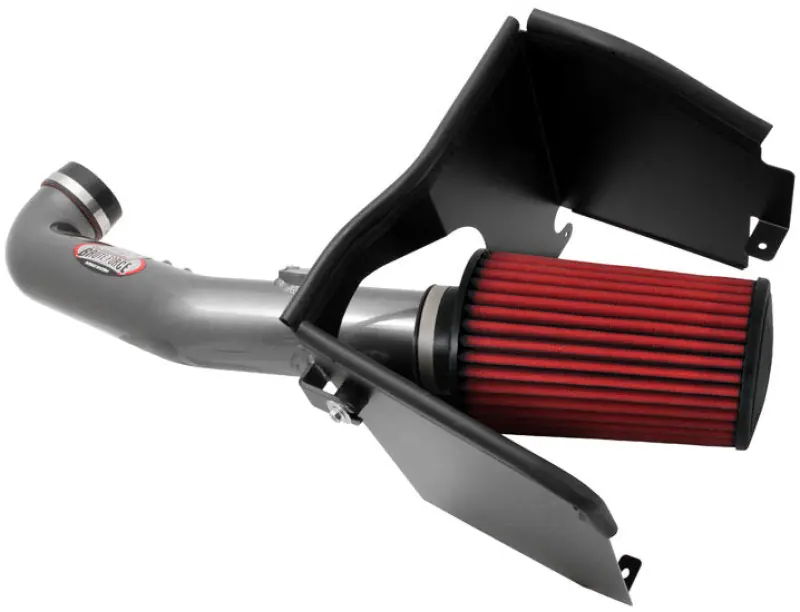

The AEM 21-8502DC Brute Force Air Intake System produces horsepower and torque gains for high displacement engines by replacing the vehicle’s restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Nissan Titan, Armada and Pathfinder as well as Infiniti QX56 models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space and is protected by a heat shield which is designed to reduce intake air temperature and increase horsepower. The intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine’s factory emissions control devices including the mass air flow sensor and two replacement silicone breather hoses. The cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is backed by AEM’s Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards while others are 50 state legal. View the 21-8502DC vehicle applications to determine the legal status for each vehicle.
- Increased horsepower
- Tuned and dyno-tested to improve acceleration and engine sound
- Low restriction aluminum tubing
- Air filter lasts up to 100,000 miles before cleaning is required (depending on driving conditions)
- Washable and reusable oil-free filter media
- AEM Lifetime Limited Warranty
Installation PDF
Installation Instruction Sheet
Dyno Chart – 2004 Nissan Titan 5.6L – 17.9HP Increase
| Estimated Horsepower Gain | 17.9 HP @ 3750 RPM |
| Replacement Filter | 21-2109DK |
| Air Filter Color | Red |
| Air Filter Material | Non-woven Synthetic |
| Clamps Included | 5 |
| Clamp Material | Steel |
| Clamp Style | Regular |
| Couplers Included | None |
| Power Spacer included | No |
| Warranty | Limited Lifetime |
| Product Style | AEM Brute Force Intake System |
| Air Filter Outlet Shape | Round |
| Intake Pipe Color / Finish | Gunmetal Gray |
| Intake Pipe Material | Aluminum |
| CARB EO Number | D-670-21 |
|
2015 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: No |
|
2014 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2014 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2013 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2013 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2012 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2012 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2011 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2011 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2010 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2010 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2010 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2009 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2009 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2009 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2008 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2008 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2008 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2007 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2007 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2007 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2006 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2006 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2006 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2005 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2005 Nissan Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2005 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2004 Infiniti QX56 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2004 Nissan Pathfinder Armada 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
|
2004 Nissan Titan 5.6L V8 Gas All Models Street Legal in All US States: Yes CARB EO Number: D-670-21 |
